Portable Fall Protection System
Out Rig Girafe (ORG)
Compliance With

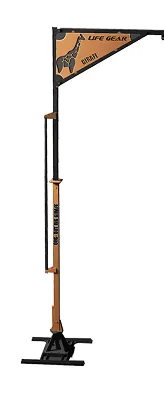

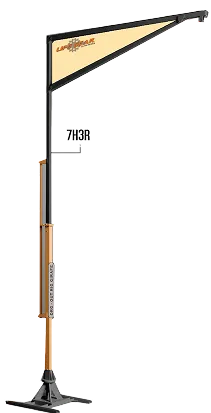

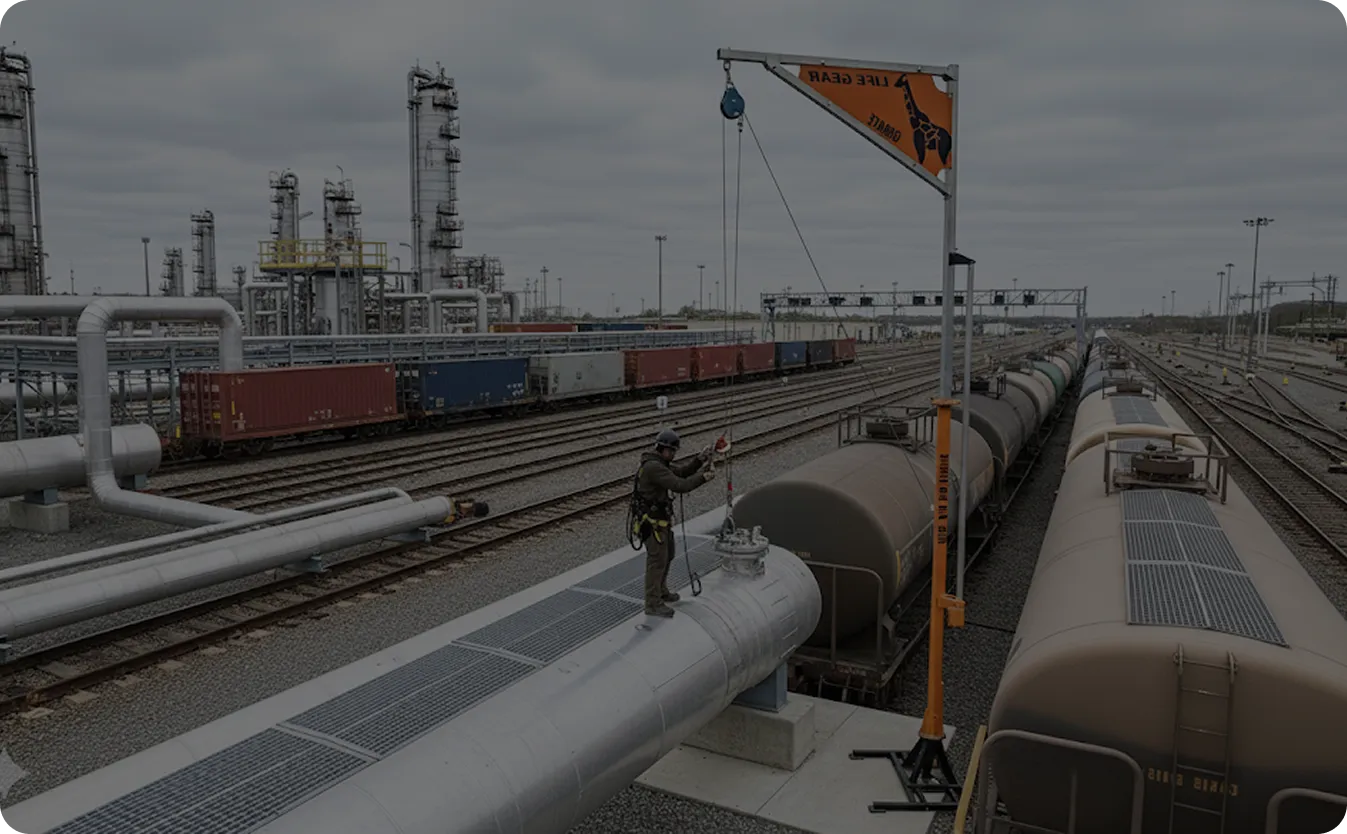

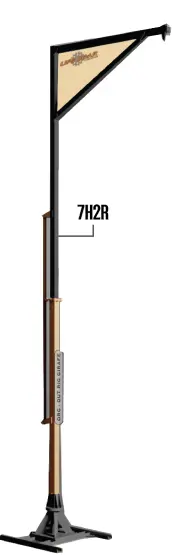

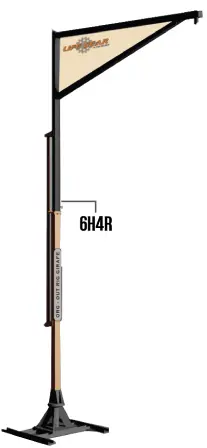

ORG (Out Rig Girafe) features a universal base that can be directly installed on existing concrete using anchor fasteners, supporting a 6-meter high neck anchor point. The base design evenly distributes static and vibrational loads through a top thick plate to the bottom anchor base for safe load absorption. A rotational base with self-lubricating plates and bearings allows smooth rotation of the entire top structure.A handle with drop-pin locking system enables locking the rotation at the desired position. The tension tube at the top anchor absorbs vibration, balances opposing loads, enhances structural strength, and improves aesthetics.
ORG includes a 2-meter extended cantilever arm with an anchor point for securing personal fall protection during work. ORG provides a quick-fix, rotatable anchorage solution on existing concrete with minimum 6 m height and 2 m cantilever reach, addressing a key industrial safety need.

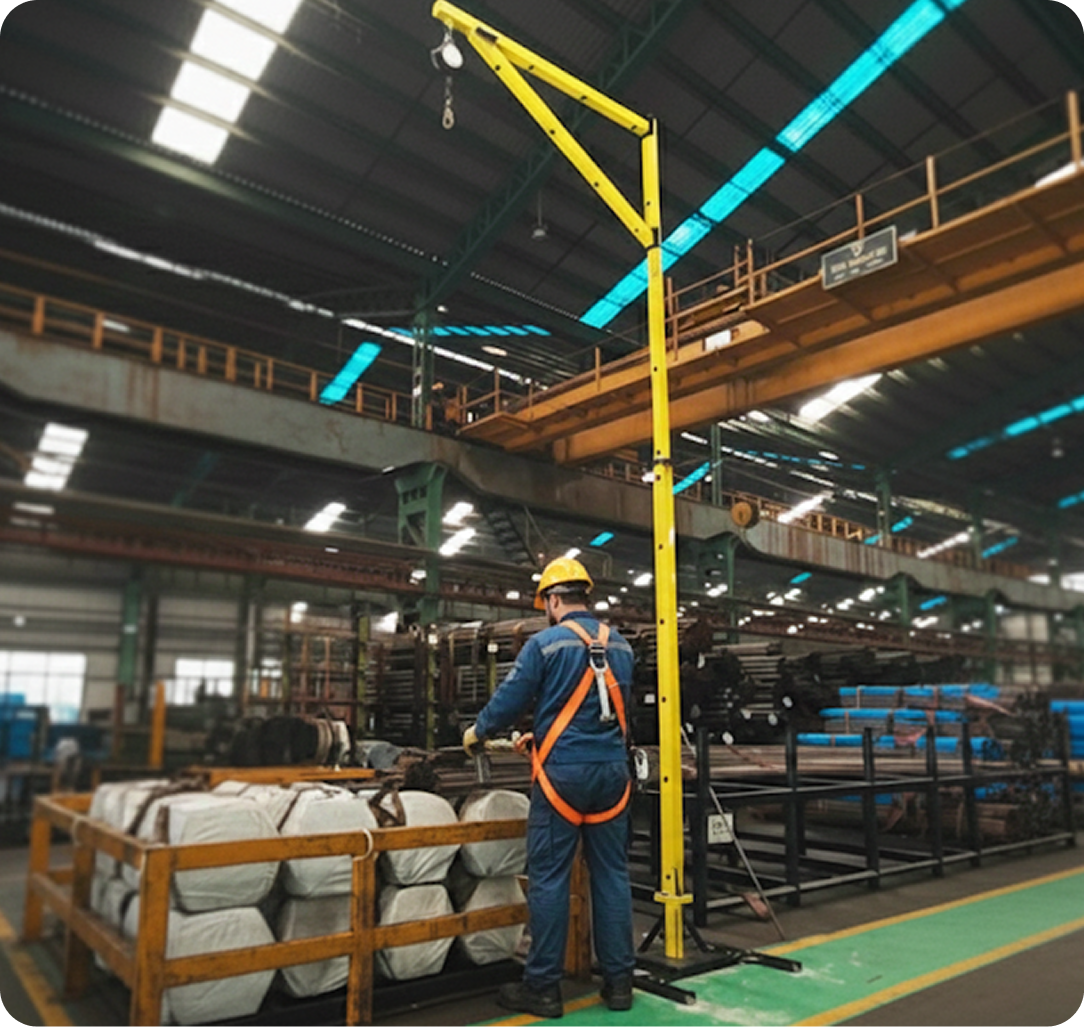

| Specification Value | Value |
|---|---|
| Total Height | 6 m |
| Arm Reach | 2 m |
| Minimum Breaking Strength | 3600 kg |
| Safe Working Load (SWL) | 280 kg (for 2 users) |
| Material | Special hardened steel with internal stiffeners |
| Rotation | 360° manual rotation via base handle |
| Swing Arm | Quick-pin for smooth rotation |
| Locking System | Angular lock-pin for secure positioning |
| Bottom Bush | High-strength bush for rotation under load |
| Coating | Anti-rust protective coating |
| Warranty | 2-year warranty against corrosion and rust |
| Certification | EN 795 Class A certified |
| Testing & Inspection | Dispatched with a TPI certificate. |
Upgrade to the Industry-Preferred Rotatable AnchorageContact Us for an ORG Demo.
Stop Building StructuresORG Gives You a 6 m Anchor with a 2 m Cantilever

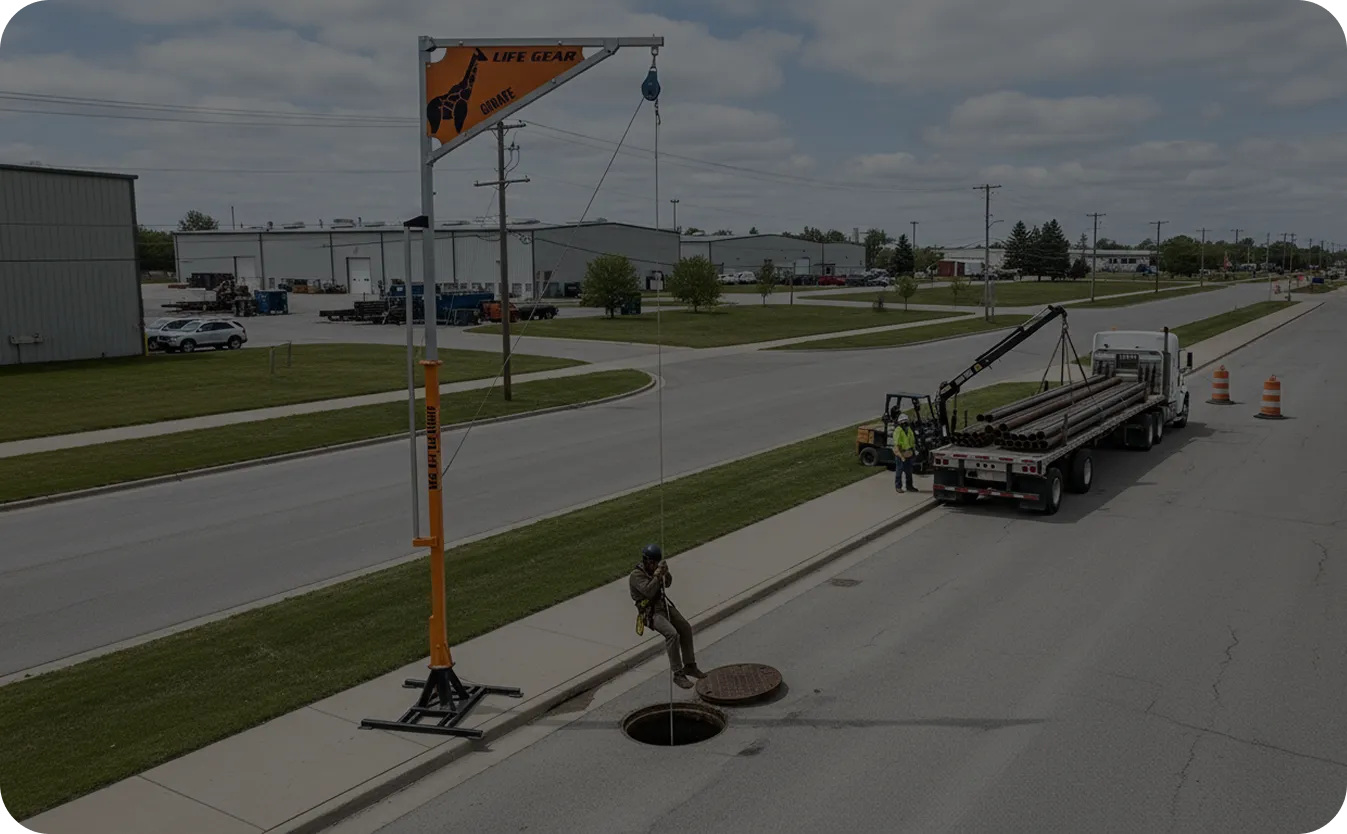

Need Height and Reach on Existing Concrete?ORG Delivers Instant Fall Protection
High Neck Anchor. Extended Reach.Zero Construction, Choose ORG
Reach Higher, Spend Smarter,Install ORG for 6-Meter Safety Without Civil Work

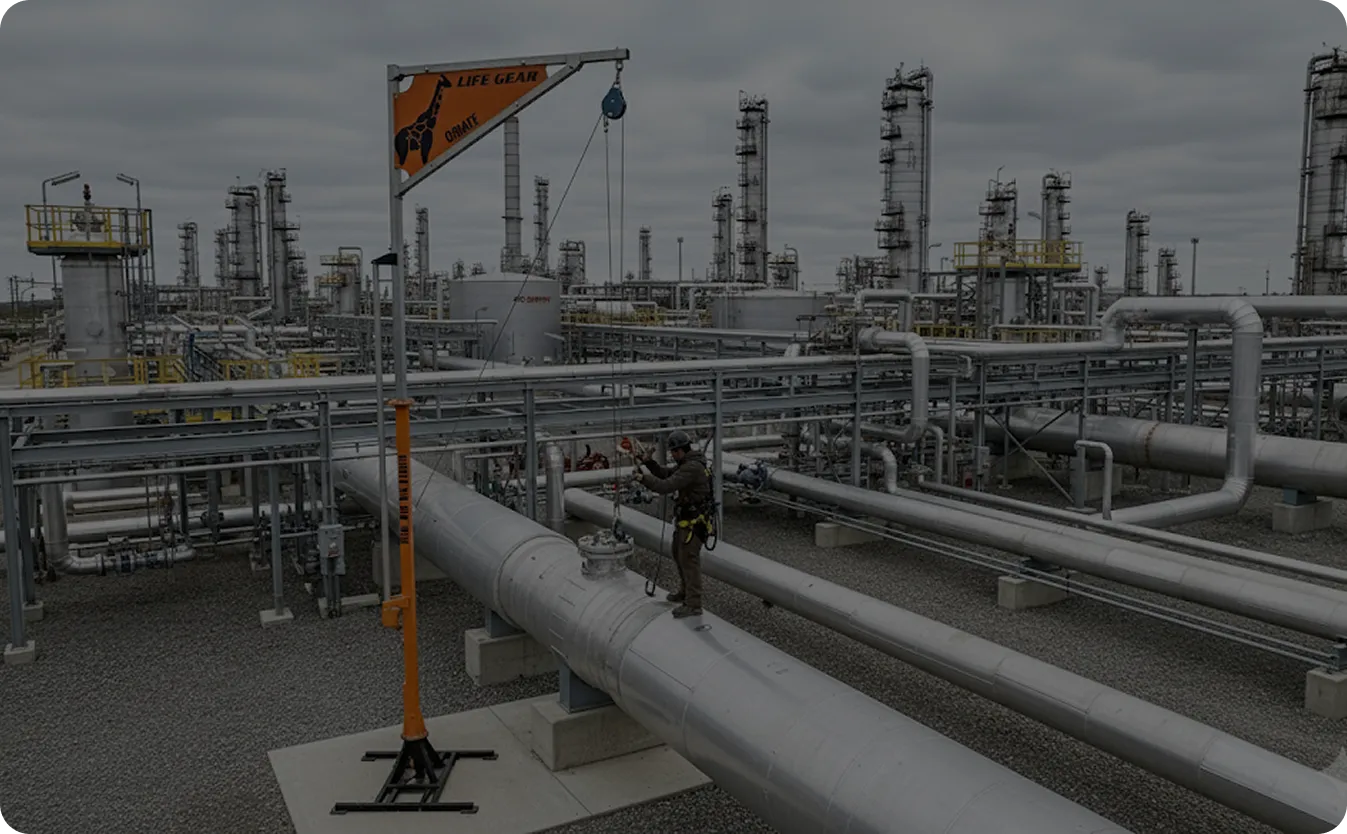

•Cost-Saving Solution for High Anchor Points
Provides a 6-meter high neck anchor point without the need for constructing towers or structural modifications, significantly reducing overall project costs.
•Easy & Quick Installation
Universal base mounts directly onto existing concrete using anchor fasteners, minimizing installation time, labor, and downtime.
•Preferred Choice Across Industries
Robust design, rotatable functionality, and compliance with industrial safety needs make ORG a widely preferred anchorage solution in industrial environments.
•Superior Height & Extended Reach
Delivers a 6-meter vertical anchor height with a 2-meter cantilever reach, ensuring safe and efficient access for work-at-height applications.
•Flexible, Lockable Rotation for Safe Working
Smooth 360° rotation with a drop-pin locking system allows precise positioning and safer operation during tasks.
High-Neck Engineered Fall
Protection for Restricted
Access Work.
